Operation, Installation, and Start-Up of a Water Pressure Reducing Valve

how to install a pressure reducing valve

Table of contents

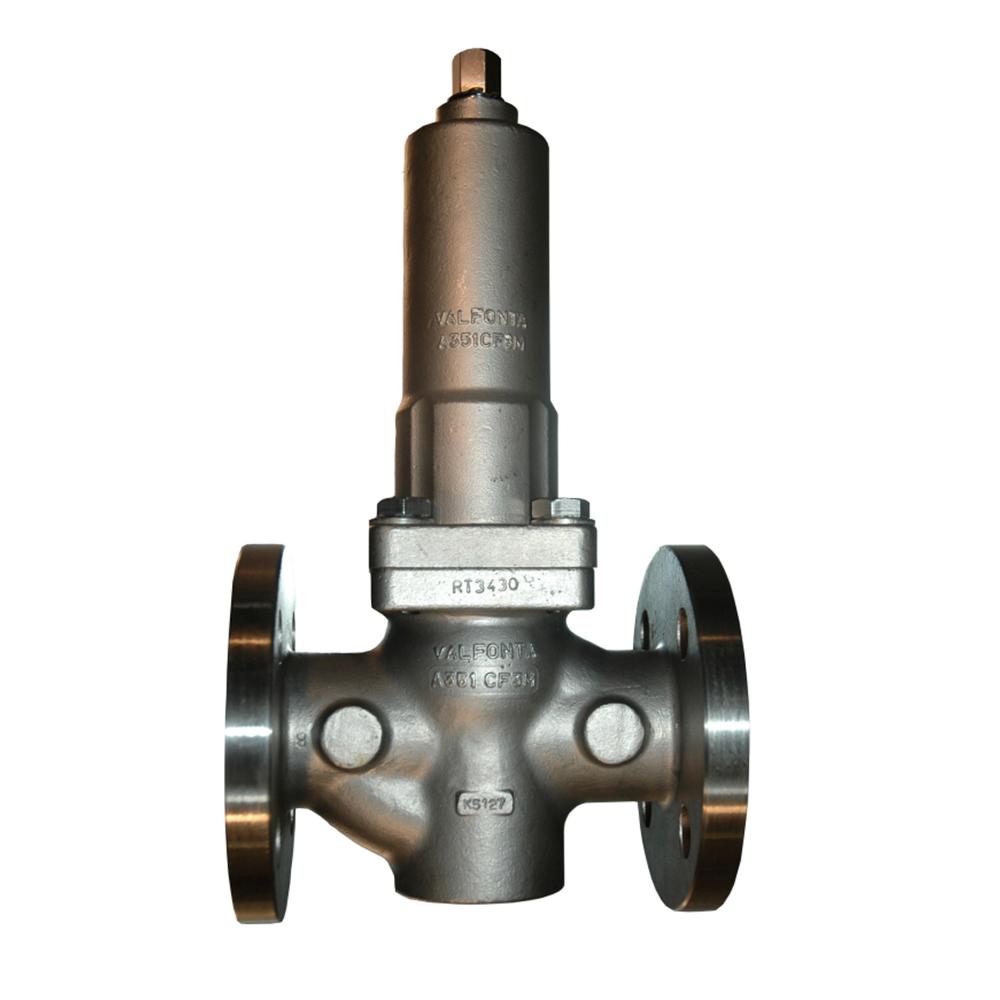

To explainhow to install a pressure reducing valve, we will use the VALFONTA VD model as an example, designed to maintain a constant outlet pressure using the regulation piston.

It operates on the principle of direct action; the upstream pressure reaches the valve and pushes the sleeve upward, activating the seal. Once the valve is closed, the regulation screw should be turned clockwise. This causes the spring to move, which acts on the sleeve and seals, opening the valve to the necessary pressure. Any variation in the inlet pressure will be absorbed by the valve through the compensation of the two parts of the sleeve, connected by a compensation hole.

Installation of a pressure reducing valve like this

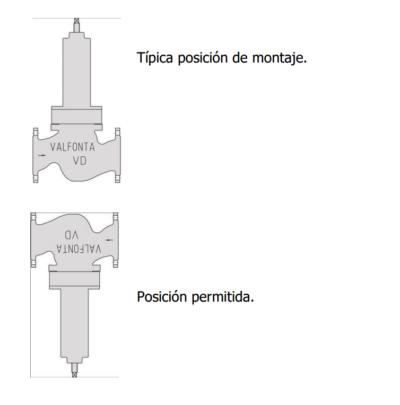

It is crucial to thoroughly clean the pipe before installing the valve to prevent any small particles or impurities from affecting its proper functioning. It is also highly recommended to install a filter at the valve’s inlet for protection. The valve should be installed in a horizontal pipe; the flow direction must correspond with the direction indicated by the arrow on the valve body.

The support pieces for the valve should be placed as close as possible to it, but never fixed to the valve or actuator, in order to eliminate unnecessary stresses.

How to install a pressure reducing valve: start-up

The first step for a proper start-up is to open the shut-off valves very slowly to avoid any water hammer during the process. Next, the regulation screw should be turned to achieve the required pressure.Increasing the spring will increase the outlet pressure; it should be turned clockwise to increase it and counterclockwise to decrease it.This type of pressure reducing valve has a wide range of applications: laboratory chemical installations, water distribution systems, wastewater installations, industrial compressed air, sprinkler systems, fuel oil, and more.
