Steam injector · Tank heating
260 steam injector for liquids
316 stainless

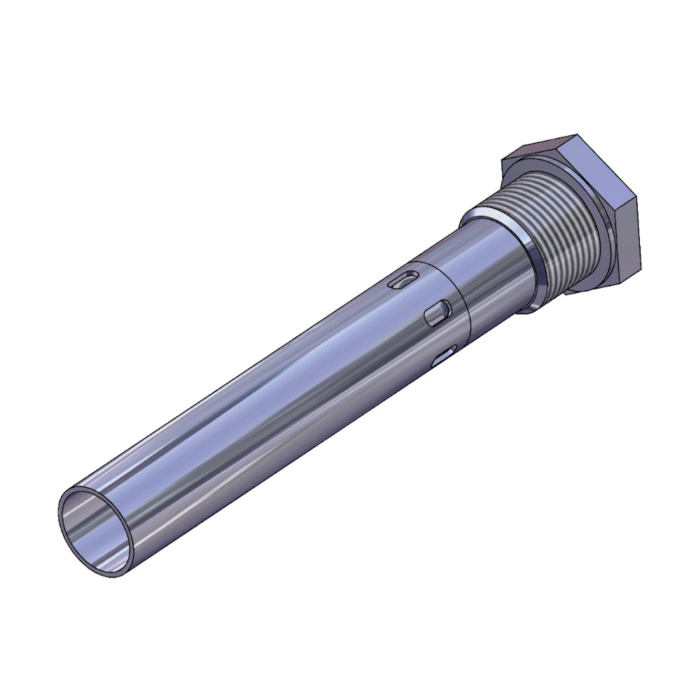

Tubular 316 stainless steel injector that heats the liquid in a tank by direct steam injection, up to 90 °C. It draws in the liquid through the holes in the tube, mixes it with the steam, and creates recirculation that evens out the temperature.
- SizesDN15, DN25, and DN40
- ConnectionMale thread R ½″ to R 1½″
- Kv1.5 to 13
- Steamup to 16 barg at 200 °C
- Liquid to be heatedup to 90 °C
- Material316 stainless
Questions about selection? Call 933 720 888 or email valfonta@valfonta.com.
- Made entirely of 316 stainless steel
- No moving parts: less noise and vibration
- Several injectors in parallel for more capacity
- Valfonta, Badalona, since 1962
What the 260 injector is used for
The 260 is a steam injector for liquids used to raise the temperature of any liquid. The steam injection draws in the liquid through the holes in the tube, where it mixes with the steam until the required temperature rise is achieved.
This suction causes constant recirculation inside the tank, which ensures good mixing and a uniform temperature. We explain it in more detail in our article on the steam injector.
- Tank heatingHeats the tank liquid with direct steam, up to 90 °C.
- Mixing and homogenizationRecirculation ensures good mixing and a uniform temperature.
- More capacityTwo or more injectors in parallel, centered along the tank.
260 injector technical specifications
| Type | Tubular steam injector, with no moving parts |
|---|---|
| Sizes | Figure No. 1 (DN15), No. 2 (DN25), and No. 3 (DN40) |
| Connection | R ½″, R 1″, and R 1½″ male thread |
| Kv coefficient | 1.5 (No. 1) · 8.5 (No. 2) · 13 (No. 3) |
| Steam flow rate | From 45 to 290 kg/h (No. 1), from 200 to 1,185 kg/h (No. 2), and from 530 to 3,000 kg/h (No. 3), with steam from 2 to 16 barg |
| Pressure rating | PN25 body |
| Maximum pressure and temperature | 16 barg at 200 °C |
| Maximum liquid temperature | 90 °C |
| Material | All 316 stainless steel |
| Mounting | Horizontal, directly on the pipe; No. 1 also on the tank wall |
Dimensions and Kv
| Figure no. | 1 | 2 | 3 |
|---|---|---|---|
| DN | 15 | 25 | 40 |
| Kv | 1,5 | 8,5 | 13 |
| Connection A | R ½″ | R 1″ | R 1½″ |
| B · length (mm) | 202 | 420 | 530 |
| C (mm) | 25 | 48 | 60 |
C: dimension from the datasheet drawing.
Steam flow rate by inlet pressure (kg/h)
| Pressure (barg) | No. 1 | No. 2 | No. 3 |
|---|---|---|---|
| 2 | 45 | 200 | 530 |
| 3 | 60 | 270 | 710 |
| 4 | 80 | 340 | 900 |
| 5 | 100 | 405 | 1.080 |
| 6 | 115 | 475 | 1.250 |
| 7 | 135 | 550 | 1.410 |
| 8 | 150 | 620 | 1.620 |
| 9 | 170 | 690 | 1.800 |
| 10 | 185 | 765 | 2.000 |
| 11 | 200 | 830 | 2.150 |
| 12 | 225 | 880 | 2.300 |
| 13 | 240 | 975 | 2.500 |
| 14 | 255 | 1.025 | 2.700 |
| 15 | 270 | 1.100 | 2.850 |
| 16 | 290 | 1.185 | 3.000 |
Installation dimensions L and H (mm)
| Pressure (barg) | No. 1 | No. 2 | No. 3 |
|---|---|---|---|
| L · 2 to 4 | 200 | 250 | 300 |
| L · 4 to 8 | 250 | 450 | 550 |
| L · 8 to 12 | 300 | 650 | 750 |
| L · 12 to 16 | 400 | 1.150 | 1.300 |
| Dimension H | 100 | 150 | 200 |
How the 260 injector works
- Steam inlet. Steam reaches the injector through threaded connection A.
- Suction. The steam injection draws liquid from the tank through the holes in the tube.
- Mixing. Inside the tube, the liquid mixes with the steam and its temperature rises.
- Recirculation. The mixture exits through the end of the injector and maintains constant recirculation in the tank.
260 injector installation
The datasheet includes an installation diagram with dimensions L and H from the table above.
Installation and start-up
- Position. Install the injector horizontally, at the bottom of the tank and along its length, connected directly to the pipe. No. 1 can also be mounted on the tank wall using its male thread.
- Centering. Place it centered along the tank to achieve effective recirculation and distribution.
- Unobstructed discharge. Do not install any other component in the discharge area. For quiet, vibration-free operation, dimension L should be as long as possible.
- Several injectors. Center them as well and keep 150 mm between the wall and the first injector (E) and 300 mm between injectors (F).
- Clean holes. Keep the suction holes clean. If there is excessive noise, check that the suction and discharge are not blocked and that the steam pressure is not too high.
260 injector technical documentation
The 260 compared with other Valfonta injectors and ejectors
Models 248 and 250 pump or mix; the 260 and 280 heat liquids with steam.
| Model | Function | Motive fluid | Fluid drawn in or heated | Connection and sizes | Body material | Max. P and T |
|---|---|---|---|---|---|---|
| 248 | Pump and mix | Water, steam, or air | Liquids, solids, or gases | PN16 flanges · DN15–125 | WCB, bronze, or CF3M | 16 barg / 200 °C |
| 250 | Lift liquids | Dry steam or water | Cold, hot, or viscous liquids | BSP thread 3/8″–1½″ | Bronze or 316 stainless | 16 barg / 200 °C |
| 260 | Heat a tank (at the bottom) | Steam | Tank liquid, up to 90 °C | R ½″–1½″ thread · DN15–40 | 316 stainless | 16 barg / 200 °C |
| 280 | Heat liquid in-line | Steam | Circulating liquid | PN16 flanges · 25–125 mm ports | WCB or CF3M | 16 barg / 200 °C |
Data from each model’s datasheet. Models 248 and 250 are grouped under steam and liquid ejectors.
Frequently asked questions about the 260 injector
Up to what temperature can it heat the liquid?
Up to 90 °C, which is the maximum temperature of the liquid to be heated stated in the datasheet. The steam can reach 16 barg and 200 °C.
What steam flow rate does it handle?
It depends on the size and the inlet pressure: at 2 barg, from 45 kg/h (No. 1) to 530 kg/h (No. 3); at 16 barg, from 290 kg/h to 3,000 kg/h. The full table is in the specifications.
Can several injectors be installed?
Yes. If you need more capacity, you can install 2 or more in parallel, centered in the tank, with 150 mm between the wall and the first one and 300 mm between injectors.
Why is the injector noisy?
Check that the suction holes and the discharge are not blocked and that the steam pressure is not too high. An unobstructed discharge length L as long as possible helps ensure quiet, vibration-free operation.
Other Valfonta injectors and ejectors

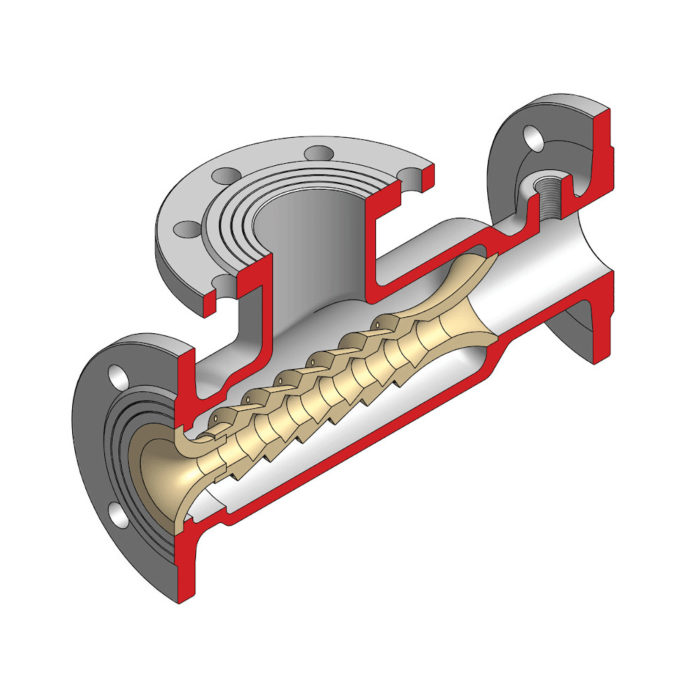

280 liquid heater
248 ejector
250 ejectorRequest a quote for the 260 injector
Give us the details of your tank and the available steam, and we will recommend the size and number of injectors.
- Available steam pressure
- Liquid and tank volume
- Initial and final temperature (max. 90 °C)
- Tank dimensions, to position the injectors
You can also call 933 720 888.
